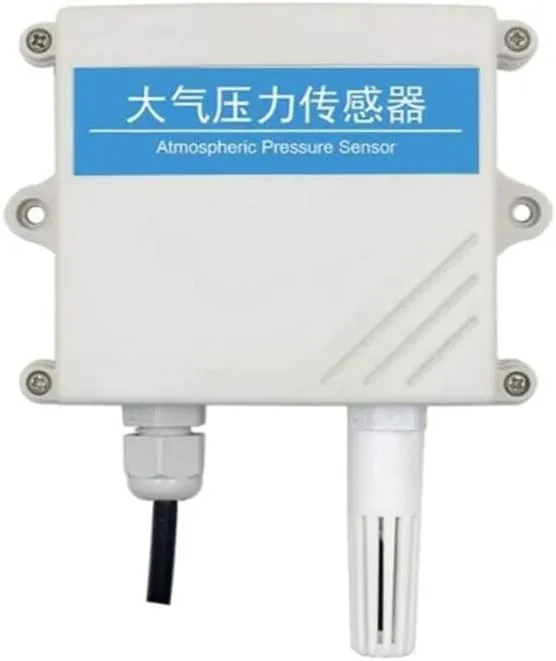

- Imported sensors are used, with stable measurement data, high accuracy, strong anti-interference ability and long service life.
- 0~120Kpa wide-range air pressure measurement, can be applied to various altitudes, and multiple output types are optional.
- 10-30V wide DC voltage power supply, supporting simultaneous measurement of atmospheric pressure and temperature, widely used in environmental computer rooms, airports, railway stations, commercial building control, family residences, office buildings, schools, conference rooms, shopping malls, restaurants, stadiums , Cinemas, libraries and other places to conduct meteorological monitoring.
- Air pressure accuracy: ±0.15Kpa at 25C 75Kpa Air pressure range: 0~120Kpa
- Output signal: RS485/4-20mA/O-5V/0-10V signal
Equipment power supply: 10~30VDc
Air pressure accuracy: ±0.15Kpa at 25C 75Kpa
Temperature accuracy: soil 0.5°C (25°C) (default)
Working temperature: -40°℃~ 60°℃, 0%RH~80%RH
Measuring medium: air
Air pressure range: 0~120Kpa
Temperature range: -40~80°C (customizable)
Output signal: RS485/4-20mA/O-5V/0-10V signal
Load capacity: output resistance <250 (voltage output), ≤600 (current output)
Power consumption: ≤0.5W
